The Coaxial cable stripping machine S-09S is a programable multi step stripping machine for coaxial cables, it can process coaxial cables up to 5mm outside diameter and strip lengths up to 48mm, high precision rotary stripping up to 9 steps, no mechanical adjustments required when changing wire sizes.

            Model                    S-09S                      S-09R                     S-09Q
Available Wire Size: Φ0.81mm ~ Φ5.0mm Φ3mm ~ Φ15.00mm 0.81 ~ 3.5mm
Stripping Length: 0 - 48.00mm 0.10mm ~ 85.00mm Head 100mm, Tail 40mm
Stripping Method: rotary Blade 2 Pcs rotary Blade 3 Pcs High Accuracy Rotary Cutter
Cutting Length:     16.0 ~ 99999.9mm
0.01mm 0.01mm 0.01mm
Blade Material: Tungsten Steel Tungsten Steel Tungsten Steel
Power Supply: 220V / 50Hz 110V / 60Hz 220V / 50Hz 110V / 60Hz 220V / 50Hz,400W
Net. Weight: 28kg 28kg 115Kg
Dimension: 226 ×330 × 620mm 226 ×330 × 620mm 680 × 670 × 450mm


 ** Other requirement available machines and spec your request, Please contact for more infomation and detail.


Wire Strip with  Coaxial Machines

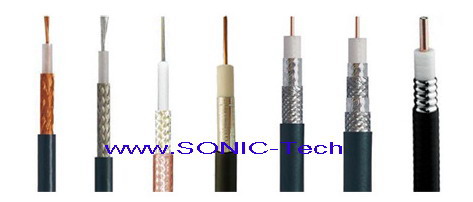

Sample Wire Stripping.
