Full Auto Terminal Crimping +Vibration Sysytem Machine
Full Auto Terminal Crimping Machine
Strip+Twisting.

Products List

Wire Stripping Machine.
 1. Wire Stripping Cutting Machine.
 2. Enamel Stripping Machine.
 3. Pneumatic Wire Stripping  Machine.
 4. Coaxial Cable Strippng  Machine.
Tape and Tube Cutting machine.
 1. Tape and Flat Tube Cutting Machine.
 2. Tube Cutting Machine.
Terminal Crimping Machine..
 1. Full AutoTerminal Crimping Machine.
 2. Semi Auto terminal Crimping Machine.
 3. Terminal Crimping Tools.
Dot Marking Machine.
 1. Dot Peen Marking Machine.
 2. Portable Dot Peen Marking Machine.
Force Gauge.
 1. Electric-vertical-test-stand .
 2. Wire Terminal Force Gauge.
 3. Force Gauge.
Another Products.
 1. Auto Screw Feeder machine.













Product Details. Model: V1
Features:
1. Bulk terminal and tape terminal are all available, the vibration plate can be feed bulk terminal automatically.
2. Full automatic cutting stripping twisting and crimping, hig speed and accuracy.
3. Wire conveyor is for chice if you want to process long wire (more than 1 m)

Specification
:

Wire Size: AWG 16~AWG 30
Cutting Leangth : 5.0~9999.9mm
Stripping Lenght : Min: 1, Max 10mm

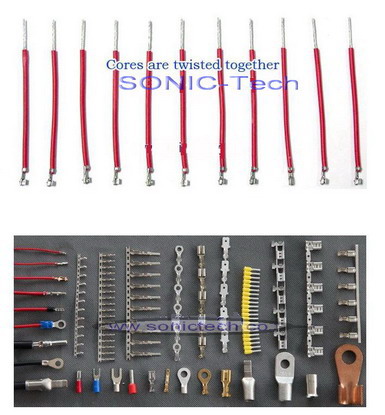

Twis Function : Can twisting the cores of wire tail
Tolerance : ±0.1mm
Crimping Force : 1.5~2.0Tons
Stroke : 30mm
Motor : 550W
Display : 5.7 inch touch screen
Speed : 4000 pcs/ Hr
Air Pressure : 0.4Mpa~0.6Mpa
Pow : 220V/50Hz
Gross Weight : 200Kg
Dimension : 900x570x1650mm

  • Other requirement available machines model and spec your request, Please contact for more infomation and detail.
