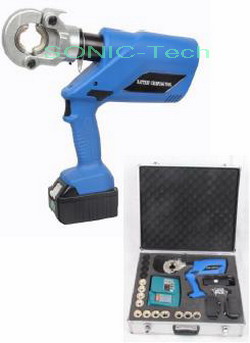

Product Details.  Model:H-300
Features:
  The hydraulic unit incorporates an automatic retraction which returns piston in to its position when maximum operating pressure is reached.
   A manual retraction
allow the user to return the piston into the starting postion incorrect crimp. The unit is equipped with a special brake   when stops the forward motion of the piston & die when the triger is released.

Specification.
  Crimping force: 60Kn
  Weight:                 approx 4.Kg.
  Crimping range : 10~300mm2
  Stoke                   : 17mm.
  Crimping Cycle  : 3s-6s/ depending terminal size
  Crimping/Charge : 320 time/ charge.
  Battery :                   18V/ 3.0 Ah.
  Times for each charger: 350 times

  Carton size : 540 x430 x 147mm

  • Other requirement available machines model and spec your request, Please contact for more infomation and detail.
