Wire Stripping and Cutting Machine.

S-09H
Products List

Wire Stripping Machine.
 1. Wire Stripping Cutting Machine.
 2. Enamel Stripping Machine.
 3. Pneumatic Wire Stripping  Machine.
 4. Coaxial Cable Strippng  Machine.
Tape and Tube Cutting machine.
 1. Tape and Flat Tube Cutting Machine.
 2. Tube Cutting Machine.
Terminal Crimping Machine..
 1. Full AutoTerminal Crimping Machine.
 2. Semi Auto terminal Crimping Machine.
 3. Terminal Crimping Tools.
Dot Marking Machine.
 1. Dot Peen Marking Machine.
 2. Portable Dot Peen Marking Machine.
Force Gauge.
 1. Electric-vertical-test-stand .
 2. Wire Terminal Force Gauge.
 3. Force Gauge.
Another Products.
 1. Auto Screw Feeder machine.

Model
S-09B
S-09D
Core Cross-Section Range:
0.1 - 2.5mm2
(AWG 14~32)
0.1 - 4.5mm2
(AWG 12~32)
0.1 - 8.0mm2 (AWG9~32)

0.1 - 10.0mm2

Max Conduit Diameter:
Ø4.5mm
Ø4.5mm
Ø10mm
Ø10.0mm
Cutting Length:
5 ~ 9999mm
Stripping Length:
Head 0~35mm, End 0~15mm
Head 0~35mm, End 0~15mm
Head 0~35mm, End 0~15mm
Head 0~99mm, End 0~70mm
Max. Middle Stripping Section:
11 mm
Motor Step Angle Accuracy:
3-phase 6 shot 1.5/3
Cutting Tolerance:
±(0.002×L)  （L=Cutting Length)
Speed:
3000~7000pcs/hour
3000~8000pcs/hour
Display
English LCD  dispaly
Drive Mode:
2 Drives
4 Drives
Blade
Hard tungsten steel
Appropriate Wire:
PVC, Teflon, glass wire
Power Supply:
220V/50Hz   110V/60Hz
Power Rating:
180W
220W

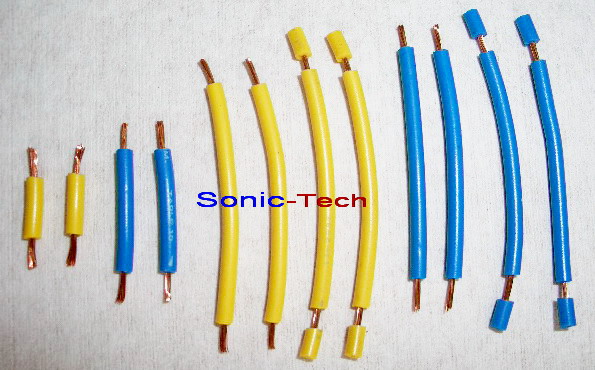

Wire Strip
