  Product Details. Model: S-09D

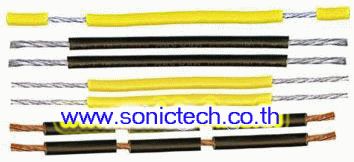

This model has a strong motor, suitable for AWG9 ~ AWG32 wires. You only need to set the stripping length of both side, total cutting length, quantity etc., then it will strip and cut your wires full automatically!


Available Core Cross-Section Range: 0.1 - 8.0mm2 (AWG9 ~ AWG32)
Conduit Diameter: φ8mm
Cutting Length: 5 ~ 9999mm
Stripping Length: Head 0~35mm, End 0~15mm
Memory Function: Can store Max. 99 group programs
Max. Middle Stripping Section: 11
Cutting Tolerance:  ± (0.002×L)  (L=Cutting Length)
Speed: 3000~8000pcs/hour
Display Way: English LCD dispaly
Drive Mode: Four wheel drives
Blade Material: Hard tungsten steel
Appropriate Wire: Suitable for kinds of wires, such as PVC, Teflon, glass wires etc.
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 220W

Wire_S-09C/ D
