Heavy Duty Wire Stripping and Cutting Machine.


Heavy Wire Strip Machine
S-09J

Products List

Wire Stripping Machine.
 1. Wire Stripping Cutting Machine.
 2. Enamel Stripping Machine.
 3. Pneumatic Wire Stripping  Machine.
 4. Coaxial Cable Strippng  Machine.
Tape and Tube Cutting machine.
 1. Tape and Flat Tube Cutting Machine.
 2. Tube Cutting Machine.
Terminal Crimping Machine..
 1. Full AutoTerminal Crimping Machine.
 2. Semi Auto terminal Crimping Machine.
 3. Terminal Crimping Tools.
Dot Marking Machine.
 1. Dot Peen Marking Machine.
 2. Portable Dot Peen Marking Machine.
Force Gauge.
 1. Electric-vertical-test-stand .
 2. Wire Terminal Force Gauge.
 3. Force Gauge.
Another Products.
 1. Auto Screw Feeder machine.

Product Details.Model: S-09J
Features:

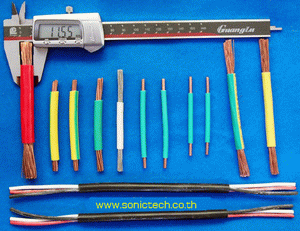

The heavy duty wire stripping machine is especially designed for processing large gauge wires and big diameter cables, it's able to process up to 70mm2 wires and Max. 16mm O.D. cables.

Specifications:

Available Wire Size: 0.3 ~ 70 mm2
Max. Conduit Diameter: Φ18mm
Max. Cutting Length: 99999mm
Stripping Length: Head 0~99mm, End 0~99mm
Max. Middle Stripping Section: 13 places
Memory Function: Can store Max. 99 group programs
Cutting Tolerance: ±(0.002×L) (L=Cutting Length)
Speed: 2000pcs/hour
Display Way: English LCD display
Drive Mode: 8 wheels drive
Blade Material: Hard tungsten steel
Power Supply: AC 220V/50Hz  AC 110V/60Hz
Power Rating: 1000W
Noise Level<70dBA
Weight: 72Kg
Dimension: 400 X 515X 345mm
